Databricks Tips #10: Unity AI Gateway — centralized governance for LLMs in production

Rate limiting, guardrails, usage tracking, cost attribution, fallbacks and traffic splitting. Everything you need to govern LLMs across your organization.

Your team has 5 LLM endpoints in production. Marketing uses GPT to classify tickets, the legal team uses Claude to summarize contracts, data science has a fine-tuned model for NER. Nobody knows how much each one is spending, there are no usage limits, and if an external model goes down… well, it goes down.

Unity AI Gateway is the missing governance layer: a central point to control access, costs, quality and resilience for all the LLM traffic in your organization.

NoteTL;DR

• One endpoint, multiple models: transparent routing, fallbacks and traffic splitting.
• Rate limiting per endpoint, user or group — free.
• Guardrails with LLMs as evaluators: PII, unsafe content, jailbreak, hallucinations and custom.
• Usage tracking in system.ai_gateway.usage with tokens, latency and cost tags.
• Cost attribution per team, project and model via system.billing.usage.
• OpenAI-compatible API: change the base_url and you’re done.

---

0. What AI Gateway is

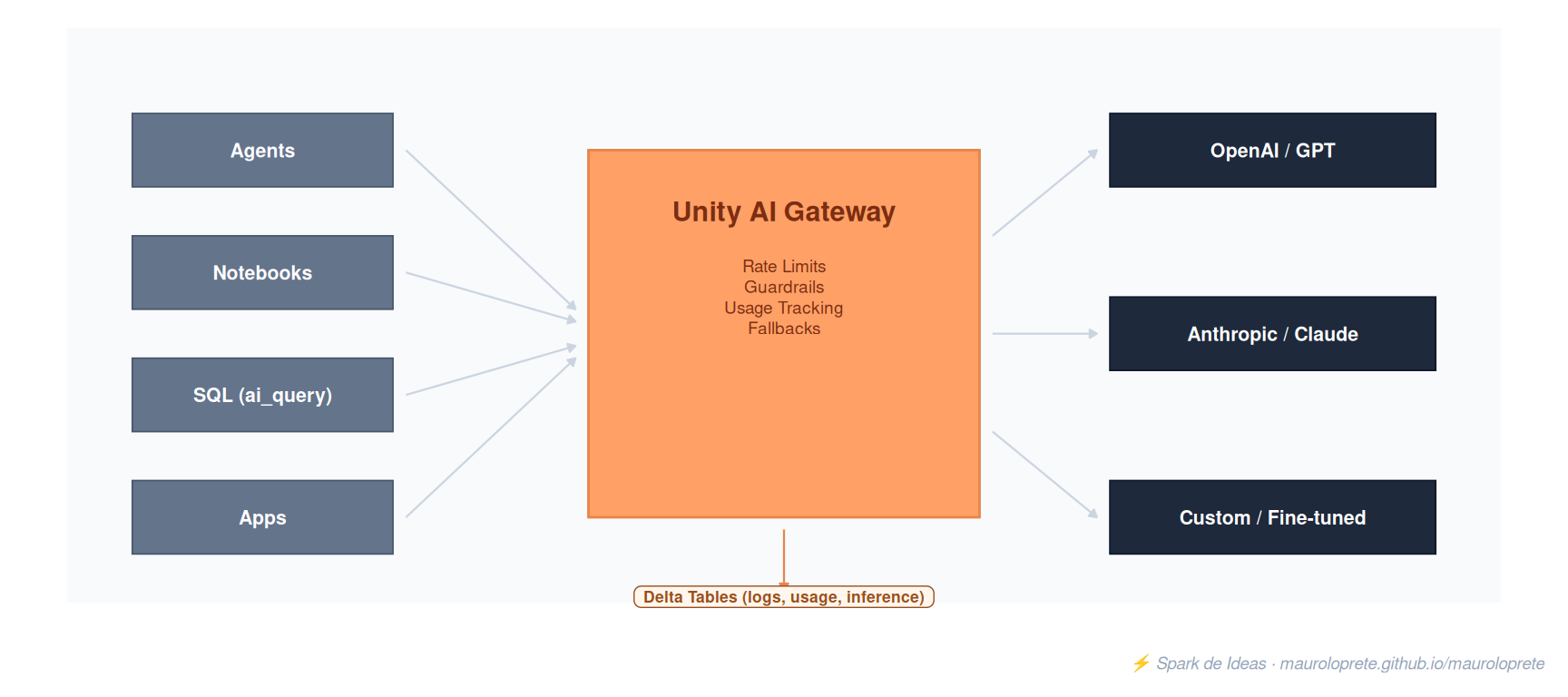

Unity AI Gateway: governance layer between consumers and the LLM models.

AI Gateway is a proxy layer between your consumers (agents, notebooks, apps, SQL) and the LLM models (OpenAI, Anthropic, Google, custom models). All the traffic goes through the gateway, which enforces governance rules and logs everything to Delta Tables inside Unity Catalog.

What it controls:

• Who can use which model (Unity Catalog permissions)
• How much each user/group can use (rate limits)
• Which content goes through and which gets blocked (guardrails)
• How much each team/project costs (cost attribution)
• What happens if the primary model fails (fallbacks)

---

1. OpenAI-compatible API

The key to AI Gateway is that it exposes an OpenAI-compatible API. Any SDK that supports OpenAI works by just changing the base_url:

Listing 1: Using AI Gateway with the OpenAI SDK: only base_url and api_key change

from openai import OpenAI

client = OpenAI(
    api_key=DATABRICKS_TOKEN,
    base_url="https://<workspace>.azuredatabricks.net/ai-gateway/mlflow/v1"
)

response = client.chat.completions.create(
    model="databricks-claude-sonnet-4",
    messages=[{"role": "user", "content": "What is Delta Lake?"}],
    max_tokens=256,
)
print(response.choices[0].message.content)

It also supports each provider’s native API:

Listing 2: Anthropic’s native API through AI Gateway

import anthropic

client = anthropic.Anthropic(
    api_key="unused",
    base_url="https://<workspace>.azuredatabricks.net/ai-gateway/anthropic",
    default_headers={
        "Authorization": f"Bearer {DATABRICKS_TOKEN}",
    },
)

message = client.messages.create(
    model="<ai-gateway-endpoint>",
    max_tokens=256,
    messages=[{"role": "user", "content": "What is Delta Lake?"}],
)

Supported providers

Provider	Models	Auth
OpenAI	GPT-4o, GPT-5, o-series	API key
Anthropic	Claude Opus, Sonnet, Haiku	API key
Google	Gemini Pro, Flash	Service account
Meta	Llama 4, Llama 3.x	Hosted by Databricks
Amazon Bedrock	Claude, Cohere, AI21 via AWS	AWS access key
Azure OpenAI	GPT via Azure	API key or Entra ID
Custom	Any OpenAI-compatible proxy	Bearer token

---

2. Rate Limiting

Rate limiting controls how many requests or tokens each user or group can consume.

Limit types

• QPM (Queries Per Minute): requests per minute
• TPM (Tokens Per Minute): tokens consumed per minute

Levels

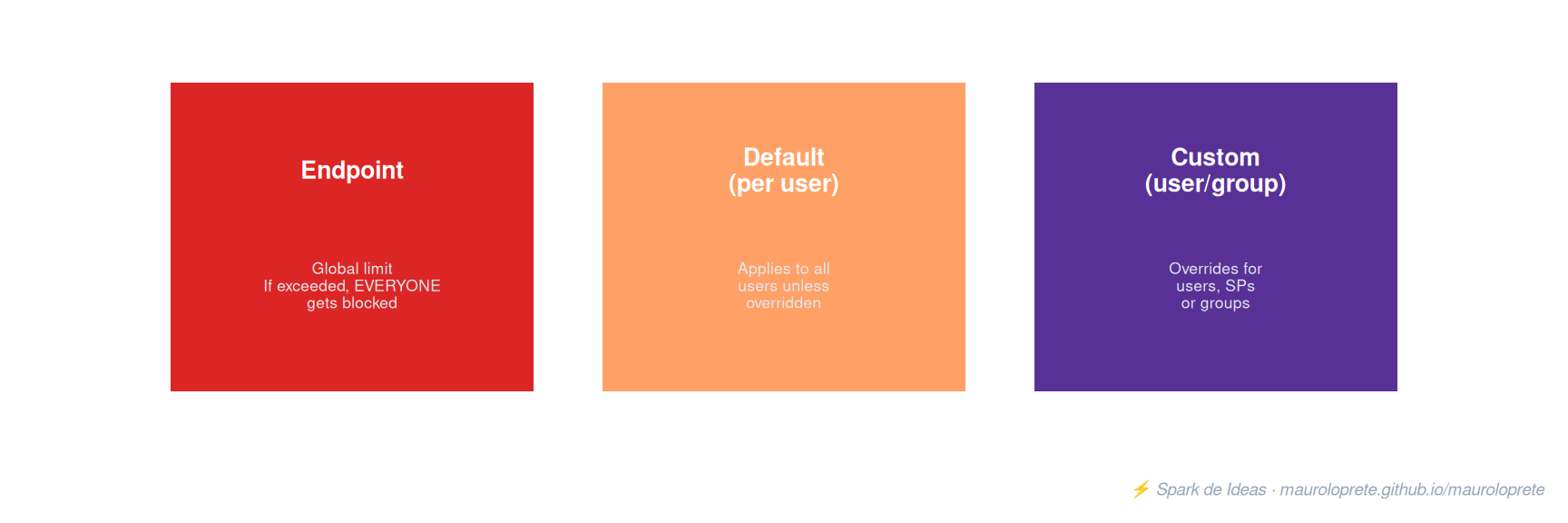

Rate limiting levels: endpoint (global), default (all users) and custom (per user/group).

Level	Behavior
Endpoint	Global limit. If exceeded, all requests get blocked
Default (user)	Applies to every user, unless overridden
Custom	Override for individual users, service principals or groups

Key rules

• If a user has both QPM and TPM configured, the most restrictive one applies
• User limits override group limits
• Maximum of 20 rate limits and 5 group-specific limits per endpoint
• Requests exceeding the limit get HTTP 429 (Too Many Requests)
• Rate limiting is free

TipTip: short bursts can slip through

The implementation may allow short bursts because concurrent requests are processed before the usage counter gets updated. Don’t design assuming millisecond-exact enforcement.

---

3. Guardrails: smart content filtering

Guardrails use an LLM as an evaluator to filter content on input and/or output. Two endpoints are involved: the inference one (your model) and the evaluator (the one enforcing the guardrail).

Available types

Guardrail	Action	Phase	What it does
PII redaction	Sanitize	Input/Output	Replaces PII with [NAME], [EMAIL], etc.
PII blocking	Block	Input/Output	Blocks if PII is detected
Unsafe content	Block	Input/Output	Hate speech, violence, self-harm, sexual content
Jailbreak	Block	Input	Detects prompt injection, Base64 obfuscation, role-playing
Hallucination	Block	Output	Fabricated facts, made-up statistics
Custom	Block/Sanitize	Input/Output	Your own evaluator prompt (up to 5,000 chars)

Custom guardrail example

Listing 3: Custom guardrail prompt: block off-topic questions for a support bot

You are evaluating whether a user message is off-topic for a
customer support assistant for Databricks.

A message is on-topic if it is about:
- Databricks features, pricing, or documentation
- Account, billing, or support issues
- Data engineering or analytics questions

Flag off-topic messages.

Examples:
- "How do I configure Unity Catalog?" -> on-topic, do not flag
- "What's a good recipe for lasagna?" -> off-topic, flag

Behavior

• Fail-closed: if the evaluator fails, the request gets blocked (it can’t be bypassed through transient failures)
• Dry-run mode: evaluate without blocking — useful for testing
• Blocked requests return HTTP 400
• Maximum of 3 blocking + 1 sanitizing guardrails per phase (input/output)
• Timeout: 30 seconds per guardrail

WarningGuardrail limitations

• They don’t see the system prompt, previous conversation turns, tool-call payloads or images
• Single-message evaluation — they don’t detect multi-turn patterns
• Not supported with custom model endpoints
• Each guardrail call is billed as a regular call to the evaluator endpoint

---

4. Usage Tracking

Every request that goes through AI Gateway gets logged in the system.ai_gateway.usage system table.

Key fields

Field	Type	Description
endpoint_name	STRING	Endpoint name
requester	STRING	User or service principal
destination_model	STRING	Model that processed the request
input_tokens	LONG	Input tokens
output_tokens	LONG	Output tokens
total_tokens	LONG	Total tokens
latency_ms	LONG	Total latency
status_code	INT	HTTP status
endpoint_tags	MAP	Endpoint tags (team, project)
request_tags	MAP	Individual request tags
routing_information	STRUCT	Fallback attempt details

Request tags for cost attribution

You can tag each individual request for granular tracking:

Listing 4: Request tags for cost attribution per project and team

import json

response = client.chat.completions.create(
    model="databricks-claude-sonnet-4",
    messages=[{"role": "user", "content": "Summarize this contract"}],
    extra_headers={
        "Databricks-Ai-Gateway-Request-Tags": json.dumps({
            "project": "legal-assistant",
            "team": "legal-ops",
            "cost_center": "CC-420",
        })
    },
)

Analysis queries

Listing 5: Usage tracking: tokens consumed per user over the last 30 days

SELECT
  requester,
  destination_model,
  COUNT(*) AS requests,
  SUM(total_tokens) AS total_tokens
FROM system.ai_gateway.usage
WHERE event_time >= current_date() - INTERVAL 30 DAYS
GROUP BY requester, destination_model
ORDER BY total_tokens DESC

Listing 6: Consumption per project using request tags

SELECT
  request_tags['project'] AS project,
  COUNT(*) AS requests,
  SUM(total_tokens) AS total_tokens
FROM system.ai_gateway.usage
WHERE request_tags['project'] IS NOT NULL
GROUP BY request_tags['project']
ORDER BY total_tokens DESC

---

5. Cost Attribution

AI Gateway enriches system.billing.usage with dedicated fields to track how much each team spends:

Cost queries

Listing 7: Cost in DBUs per endpoint over the last 30 days

SELECT
  usage_metadata.ai_gateway_endpoint_name AS endpoint,
  SUM(usage_quantity) AS dbus
FROM system.billing.usage
WHERE billing_origin_product = 'MODEL_SERVING'
  AND usage_metadata.ai_gateway_endpoint_name IS NOT NULL
  AND usage_unit = 'DBU'
  AND usage_date >= current_date() - INTERVAL 30 DAYS
GROUP BY endpoint
ORDER BY dbus DESC

Listing 8: Cost in DBUs per destination model

SELECT
  usage_metadata.ai_gateway_destination_model AS model,
  SUM(usage_quantity) AS dbus
FROM system.billing.usage
WHERE billing_origin_product = 'MODEL_SERVING'
  AND usage_metadata.ai_gateway_endpoint_name IS NOT NULL
  AND usage_unit = 'DBU'
  AND usage_date >= current_date() - INTERVAL 30 DAYS
GROUP BY model
ORDER BY dbus DESC

Listing 9: Cost in DBUs per team using endpoint tags

SELECT
  custom_tags['team'] AS team,
  SUM(usage_quantity) AS dbus
FROM system.billing.usage
WHERE billing_origin_product = 'MODEL_SERVING'
  AND custom_tags['team'] IS NOT NULL
  AND usage_unit = 'DBU'
  AND usage_date >= current_date() - INTERVAL 30 DAYS
GROUP BY team
ORDER BY dbus DESC

ImportantExternal model costs

Requests to external models (direct OpenAI, Anthropic with your API key) are billed by the provider and don’t show up in system.billing.usage. Only Databricks DBU costs appear there. For complete tracking of external models, use inference tables.

---

6. Fallbacks and Traffic Splitting

Fallbacks

If the primary model fails (429 or 5XX), AI Gateway automatically routes to the next model in the chain:

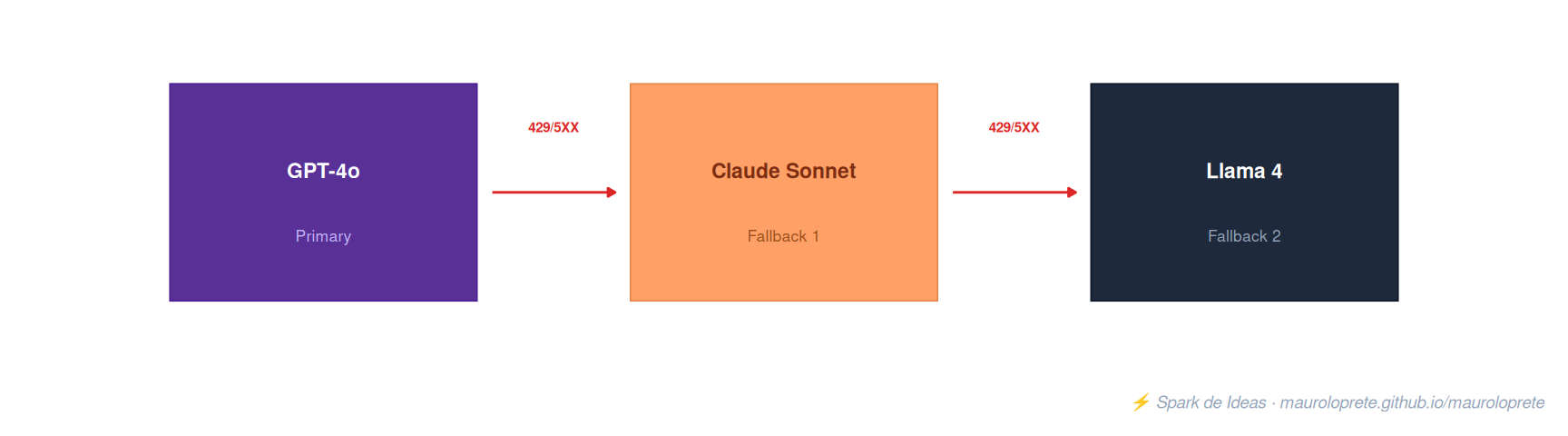

Fallback chain: if the primary model fails with 429/5XX, the next one is tried.

• Triggered by 429 errors (rate limit) or 5XX (server error)
• Each fallback is tried once, in sequential order
• If they all fail, the request fails and the last error gets logged
• Attempts are recorded in routing_information in the usage table

Traffic Splitting

Distributes requests across multiple models by percentage:

Model	Percentage	Use
GPT-4o	80%	Main model
Claude Sonnet	20%	A/B testing

• Percentages must add up to 100
• Maximum of 5 destinations per traffic split
• Use cases: A/B testing, gradual rollout, load balancing across providers

Traffic splitting and fallbacks are independent: the split determines the primary model, fallbacks apply if that model fails.

---

7. Inference Tables (Payload Logging)

Inference tables store the full request and response of every call. Useful for auditing, debugging and fine-tuning.

Key fields

Field	Type	Description
request	STRING	Raw JSON of the request
response	STRING	Raw JSON of the response
latency_ms	LONG	Total latency
status_code	INT	HTTP status
requester	STRING	Who made the request
sampling_fraction	DOUBLE	Sampling fraction (1 = everything)

Limitations

• Only in external storage catalogs (no default storage)
• Maximum payload: 10 MiB
• Best effort delivery: logs are usually available within minutes, not guaranteed
• May not log requests with 401, 403, 429, 500 errors

---

8. External Models: bring your own API key

To use models from external providers with your own API key, you create an “external model” endpoint:

Listing 10: Create an external model endpoint with an Anthropic API key

import mlflow.deployments

client = mlflow.deployments.get_deploy_client("databricks")

client.create_endpoint(
    name="claude-via-gateway",
    config={
        "served_entities": [{
            "external_model": {
                "name": "claude-sonnet-4-20250514",
                "provider": "anthropic",
                "task": "llm/v1/chat",
                "anthropic_config": {
                    "anthropic_api_key": "{{secrets/ai/anthropic_key}}"
                },
            }
        }]
    },
)

Listing 11: External model with Amazon Bedrock

client.create_endpoint(
    name="bedrock-claude",
    config={
        "served_entities": [{
            "external_model": {
                "name": "claude-v2",
                "provider": "amazon-bedrock",
                "task": "llm/v1/chat",
                "amazon_bedrock_config": {
                    "aws_region": "us-east-1",
                    "aws_access_key_id": "{{secrets/aws/access_key}}",
                    "aws_secret_access_key": "{{secrets/aws/secret_key}}",
                    "bedrock_provider": "anthropic",
                },
            }
        }]
    },
)

Credentials always go through Databricks Secrets — never in plaintext.

---

9. AI Functions from SQL

AI Gateway powers the AI Functions we saw in Tips #9. From pure SQL:

Listing 12: ai_classify: classify text using an LLM from SQL

SELECT
  ticket_id,
  ai_classify(
    descripcion,
    ARRAY('bug', 'feature_request', 'billing', 'question')
  ) AS categoria
FROM soporte.tickets
WHERE fecha >= '2026-01-01'

Listing 13: ai_extract: extract structured entities from free text

SELECT ai_extract(
  comentario,
  'producto STRING, sentimiento STRING, urgencia STRING'
) AS entidades
FROM feedback.comentarios

Listing 14: ai_summarize: summarize text at scale with batch inference

SELECT
  contrato_id,
  ai_summarize(texto_contrato) AS resumen
FROM legal.contratos

TipAutomatic batching

AI Functions handle parallelization, retries and scaling internally. Send the entire dataset in a single query — Databricks optimizes the execution.

---

10. Permissions and authentication

Endpoint permissions

Permission	Can do
CAN MANAGE	Create, modify the endpoint and configure AI Gateway
CAN QUERY	Query the endpoint (this is what end users need)

Client authentication

• Databricks Personal Access Token (PAT) as the api_key
• The token is passed as Authorization: Bearer <token>

External model credentials

• Stored via Databricks Secrets (referenced as {secrets/scope/key})
• Automatically deleted when the endpoint is removed

---

11. Gotchas

1. Guardrails don’t see the system prompt. If you set up a jailbreak guardrail, it can’t evaluate the full conversation context — it only sees the user message. Attacks that exploit the system prompt go undetected.

2. One request can generate multiple billing events. Gateway routing + guardrail call + log ingestion = 3 DBU events for a single user request. Keep this in mind when estimating costs.

3. Config updates take 20-40 seconds. Rate limit updates up to 60 seconds. Don’t expect instant enforcement after a change.

4. External model costs don’t show up in system.billing.usage. Direct OpenAI/Anthropic costs are billed by the provider. Only Databricks DBUs appear in billing. For complete tracking, use inference tables + request tags.

5. ai_query with AI Gateway Beta has limitations. It only captures usage tracking. It does not enforce rate limits, guardrails, inference tables or fallbacks. For full governance, use the API directly.

6. Maximum of 3 blocking + 1 sanitizing guardrail per phase. If you need more, combine the logic into a custom guardrail with a more complex prompt.

7. Guardrails are single-message. They don’t detect patterns across a multi-turn conversation. A sophisticated attacker can spread a jailbreak over multiple messages.

8. If the evaluator endpoint loses access to the model, it fails closed. The guardrail blocks all traffic. Choose reliable evaluators and monitor their availability.

9. Inference tables only work in external storage catalogs. You can’t use the workspace’s default storage. Set up an external location first.

10. Not available in AWS GovCloud or Azure Government. Regional availability varies — not every model is in every region.

---

12. ucode: coding agents through AI Gateway

ucode is the Databricks CLI that connects coding agents with AI Gateway. Instead of configuring separate API keys for each tool, all the agents route through your workspace — with the same governance rules, rate limits and tracking.

Supported agents

Agent	Command
Claude Code	ucode claude
Codex (OpenAI)	ucode codex
Gemini CLI	ucode gemini
GitHub Copilot CLI	ucode copilot
OpenCode	ucode opencode
Pi	ucode pi

Installation

Listing 15: Install ucode with uv (requires Python 3.12+)

uv tool install git+https://github.com/databricks/ucode

Setup

Listing 16: Configure ucode: workspace, agents and MCP servers

# Interactive setup (asks for workspace and authenticates)
ucode configure

# Configure specific agents
ucode configure --agents claude,codex

# Multi-workspace
ucode configure --workspaces https://first.databricks.com,https://second.databricks.com

# Add Databricks MCP servers (SQL, Vector Search, UC Functions)
ucode configure mcp

# Preview without applying changes
ucode configure --dry-run

Usage

Listing 17: Use coding agents through AI Gateway with ucode

# Launch Claude Code
ucode claude

# Resume previous session
ucode claude -r

# Check status and configured models
ucode status

# Check usage statistics
ucode usage

# Restore original configs
ucode revert

How it works

1. ucode configure asks for your workspace URL and authenticates with your Databricks credentials
2. It modifies each agent’s configuration files (~/.claude/settings.json, ~/.codex/config.toml, etc.) to route through AI Gateway
3. It backs up the existing configs before modifying them
4. All the coding agents’ traffic goes through AI Gateway — with rate limits, usage tracking, cost attribution and guardrails

TipNo separate API keys

With ucode, you don’t need OpenAI, Anthropic or Google API keys for your coding agents. Everything authenticates with your Databricks credentials and is governed from AI Gateway.

---

13. When NOT to use AI Gateway

Need	Alternative
Ultra-low latency (< 50ms overhead)	Direct call to the provider
On-premise models without internet access	Serving endpoint with a custom model
Massive batch inference over tables	ai_query() directly from SQL
Fine-tuning / training	Foundation Model Training APIs
Workloads without Unity Catalog	AI Gateway can’t be used

---

What’s free and what’s not

Feature	Cost
Permissions + Rate limiting	Free
Fallbacks	Free
Traffic splitting	Free
Usage tracking	Included (enabled by default)
Guardrails	Billed as calls to the evaluator endpoint
Inference tables	Billed for storage + ingestion
Hosted models (Foundation Model APIs)	DBUs per token
External models	Billed by the provider + Databricks DBUs

---

References

• Unity AI Gateway overview — Azure Databricks
• Configure AI Gateway endpoints
• Rate limits
• Guardrails
• Usage tracking
• Cost observability
• Inference tables
• External models
• AI Functions

Other posts in the series

If this post was useful, check out the previous Databricks Tips:

• Tips #1: Databricks Asset Bundles — IaC for Databricks
• Tips #2: Delta Lake — the 7 things you wish you’d known
• Tips #3: Unity Catalog — the governance nobody implements well
• Tips #4: Structured Streaming — watermarks, triggers and micro-batch
• Tips #5: MLflow + Unity Catalog — from experiment to model
• Tips #6: Feature Engineering — features that survive production
• Tips #7: Docker on Databricks — custom containers
• Tips #8: Jobs & Workflows — streaming and event-driven triggers
• Tips #9: SQL Warehouses — the compute that turns itself on
• Tips #11: Lakeflow Declarative Pipelines — declarative pipelines with built-in quality

---

Next week: Secrets & Security — credential management, RBAC and security best practices.
